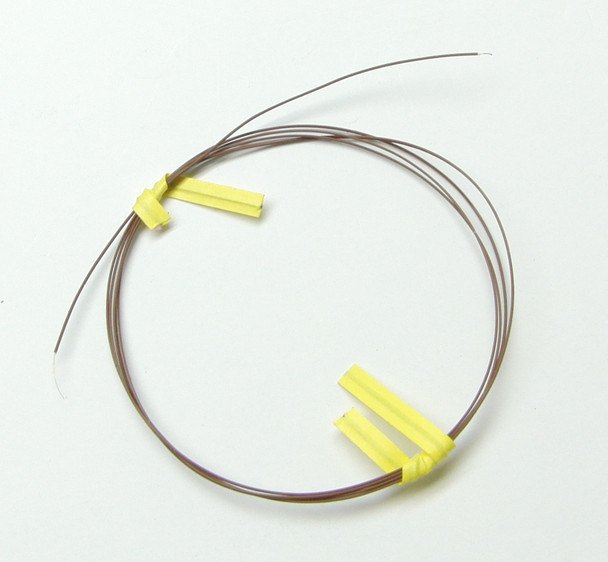

Extreme Ultra Thin K-Type Thermocouple AWG40 no plug 6ft

Extreme Ultra Thin K-Type Thermocouple AWG40 for Digital Thermometer

- 1 thermocouple 0.024 inch or 0.6 mm outer diameter with Teflon PFA insulation -

-320 to 500°F    (-200 to 260°C)

This is a flexible K-type Thermocouple for use in a wide range of medium temperature applications, such as environmental monitoring, ovens, wood kilns, laboratory and science use. K-type thermocouples are also used in low and ultra low temperature application and cryogenics.
The probe is made from AWG 40 Gauge K-type thermocouple wire, which is extremely thin and fragile at 0.08 mm conductor diameter and is rated for continuous use at from -320 °F up to 500 °F Fahrenheit (or -200 °C to 260 °C) . The K-type thermocouple is about 0.6 mm or 0.024 inch in insulation diameter. This extremely thin type K Thermocouple probe is made with a stripped ends to use in screw terminals, it has no plug

This is made to order and may need 2 to 3 days production time

Specification:

Thermocouple: K-Type
Thermocouple Grade: Class 1 (Select Grade) +/- 1.5 °C
Temperature Range: Continuous use up to 500 °F or 260 °C
ANSI color coded PFA insulation, red = -, yellow = +, outside brown
Wire length: 6 ft
Wire thickness: AWG40 (0.08 mm) diameter
Probe thickness with insulation: 0.024 inch (0.6 mm)
Stripped ends, no K-Type connector
