- K-type Thermocouple wire for making thermocouple or extension wire
- Chromel / Alumel type K thermocouple wire with Standard Accuracy (whichever is greater): +/- 2.2C or +/- .75%
- Stranded wire, AWG 24 (0.51 mm), 7 strands x 0.2 mm each
- ANSI color coded PVC insulation, red = -, yellow = +
- Sold 110 yard (330 ft, 100 meter)
AWG 24 K-Type Thermocouple Stranded Wire PVC Insulation 110 Yard
$349.99
In stock
SKU
K-AWG-24-Stranded-PVC-110yd

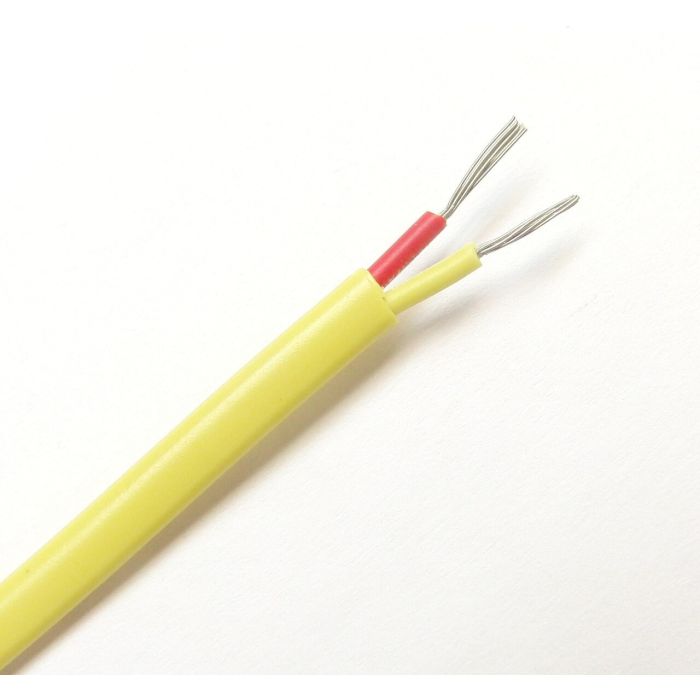

AWG24 Stranded K-type Thermocouple Wire with PVC Insulation
- 110 yard (330 ft) spool -
This is a stranded k-type thermocouple wire with yellow PVC insulation, which is good up to about 105 C or 221 F. This k-type thermocouple wire can be used to make your own K-type thermocouples for a wide range of applications, or to make your own K-type extension wire. The chromel alumel wire is made to standard K-type thermocouple specifications. This is a stranded wire with 7 filaments, it is more flexible than a solid wire and therefore especially useful for k-type extension wires. This is a 110 yard spool, this equals 330 ft of wire.
Specification
