Custom Welded K-Type Thermocouple PK-400 3ft

Custom Welded K-Type Thermocouple for Digital Thermometers  PK-400

-320 to 752°F    (-200 to 400°C)

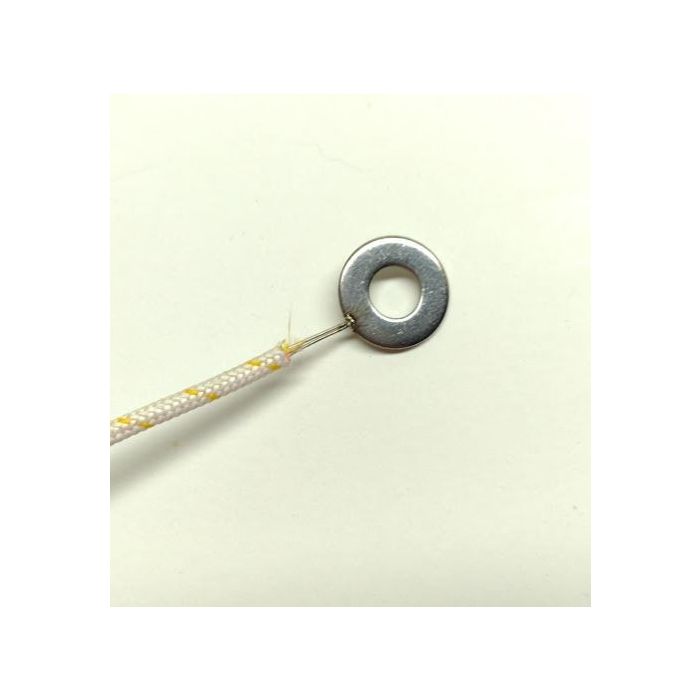

This thermocouple will be custom welded to an object provided by the customer, this can be a pipe, a screw or nut, a metal disk or wire. Welding is possible to many metals, such as steel, stainless steel, copper and more. Contact us to discuss details.

This is a reliable thermocouple wire with a K-Type sensor. The sensor is at the tip of a 3ft long wire probe, which has a medium temperature fiberglass insulation, good up to 752 degree Fahrenheit.We now secure the fiberglass with thin thermocouple wire, so you will not have a melting plastic heat shrink tube at the tip.

It has a miniature type thermocouple connector (2 flat blades) that will work with digital K-type thermometers of many manufacturers. This probe can used to measure air or gas temperatures, non corrosive liquids and it can be attached to pipes or embedded into objects you want to measure.

Specification:

Thermocouple: K-Type ( chromel / alumel )
Temperature Range: -320 to 753°F     (-200 to 400°C)
Wire length: approx. 3 ft / 100 cm
Probe Diameter: 0.06 inch (1.6mm)
Miniature K-Type connector, can be opened if you want to shorten wire
