High Temperature K-type Thermocouple Adapter Female Ceramic Mini to Premium Mini Connector

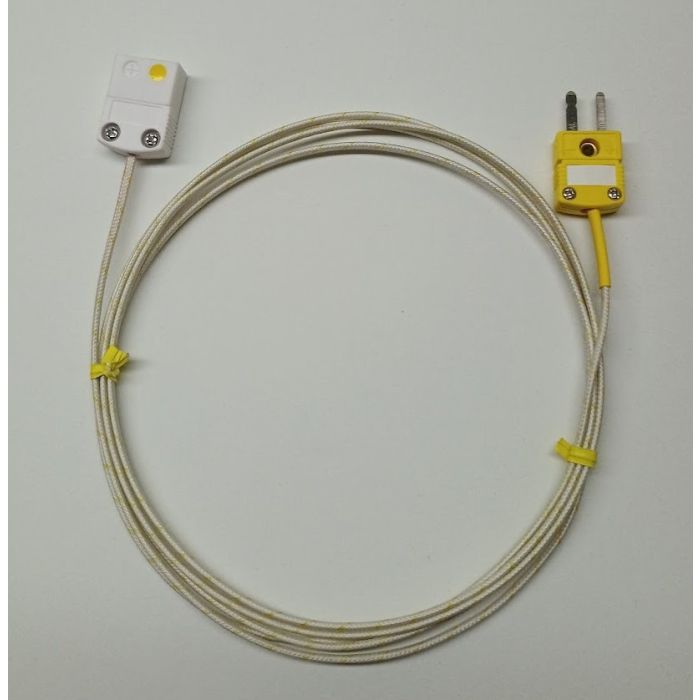

This is a K-type thermocouple adapter cable from a ceramic female miniature connector to a premium male mini connector. The female connectors are made from high temperature alumina ceramic. The male mini connectors are made from glass filled nylon. Connector blades are made from K-type compensating metals, chromel and alumel. The wire is AWG20 (0.8mm diameter) k-type thermocouple grade wire (chromel/alumel), with a high temperature fiberglass insulation, which is stable to 700 degree C (1300 degree F).

Specification:

K-type thermocouple plugs and wire (Chromel/Alumel)

Ceramic miniature (flat blade) female connector

to

Premium plastic (flat blade) male connector,

6 ft long K-type wire, AWG 20

Stable to 1300 degree F (700 degree C)
