K-type Hookup Connector Cable for High Temperature Kiln and Furnace K-Type Thermocouples CR-04-PID

- 1 thermocouple connector cable, 3 ft (100 cm) long-

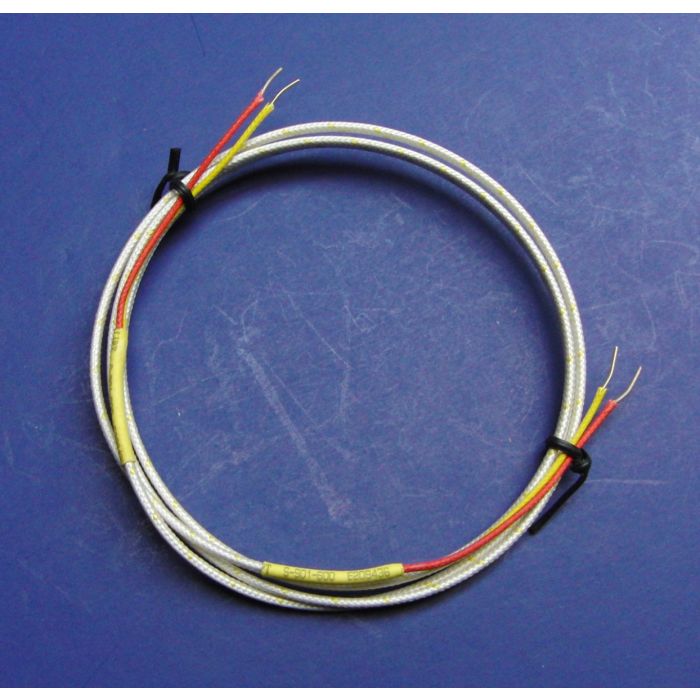

This is a K-type thermocouple extension wire CR-04 used to hook up high temperature K-type thermocouples to a PID controller or thermometer with screw terminals, which are used in kilns, furnaces and ovens. It works well with our high temperature thermocouple with ceramic insulation, model CR-02. This wire uses solid AWG 24 leads with fiberglass insulation, which is stable up to 750 degree Fahrenheit or 400 degree Celsius. The wires are color coded, yellow for + and red for - (ANSI conform). This lead has  stripped ends that can directly be connected to a screw terminal.

Specifications:

• K-type Thermocouple Extension Wire

• Fiberglass insulation, stable up to 750 °F (400 °C)

• Wire Diameter: AWG 24, 0.51 mm diameter, solid wire

• Total length: 3 ft, 36 inch (100 cm)
