- J-type Thermocouple wire for making thermocouple or extension wire
- Iron / Constantan type J thermocouple wire with Standard Accuracy (whichever is greater): +/- 2.5C or +/- .75%
- Solid wire, AWG 24 (0.51 mm)
- ANSI color coded PVC insulation, white = + (positive), red = - (negative)
- Sold in 10 yard increments, 1 unit = 10 yard, order 2 units and you receive a 20 yard wire
J-type Thermocouple Wire AWG 24 Solid PVC insulation 10 yd
$26.99
In stock
SKU
J-AWG-24-Solid-PVC-10yd
Standard J-type Thermocouple Wire with PVC insulation
- 10 yard or multiples of 10 yard -

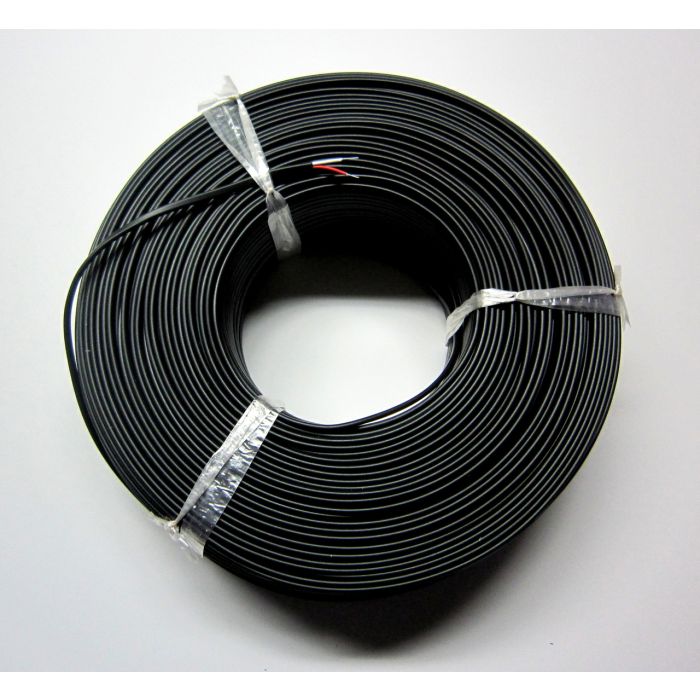

This is a J-type thermocouple wire with black PVC insulation, which is good up to about 105 C or 221 F. This J-type thermocouple wire can be used to make your own J-type thermocouples for a wide range of applications, or to make your own extension wire. The iron constantan wire is made to standard J-type thermocouple specifications. This is a solid wire and therefore especially useful for J-type thermocouples, but aslo can be used for extension wires. It is sold in 10 yard increments, so if you order 2 units of this, you will receive a single 20 yard long wire.
Specification
