K-Type Thermocouple extension cable wire standard to miniature mini connector

K-Type Thermocouple Extension Cable with Standard to Miniature Thermocouple Connectors

- this is also an adapter from standard connector to miniature connector -

Available in several length between 3 and 15 ft

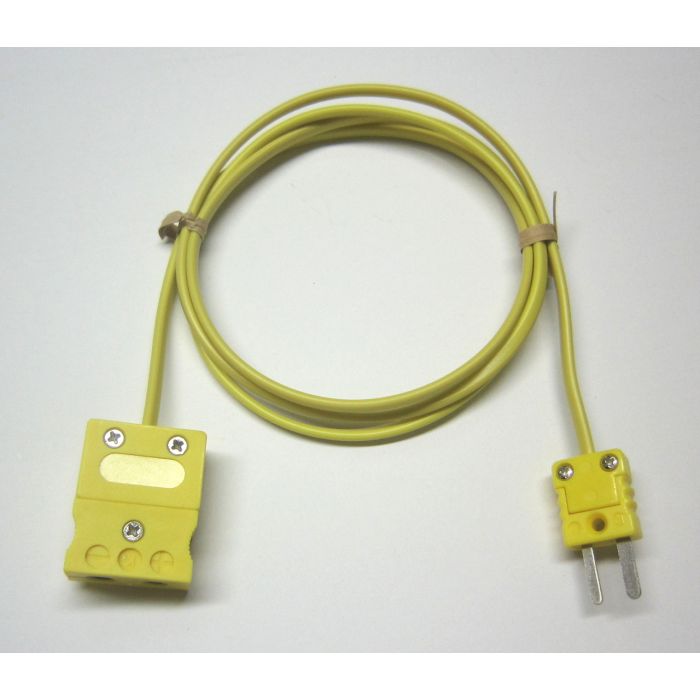

This listing is for 1 K-Type Thermocouple extension cable, with a miniature male connector with flat blades and a standard, round prong female k type thermocouple connector. They conform to the K-Type Thermocouple Extension Wire specification. This means the metal prongs and the wire are made from compensating metal, the same material as the k-type thermocouple wire, which is chromel / alumel. This means the impact of the extension wire on the temperature reading is minimized.

This is available in 3 ft, 6 ft, 9 ft, 12 ft or 15 ft, use the drop down menu to select the length. These are made to order in St Paul, MN, USA. If you need a different length, please request a quote.

Specification:
K-Type Thermocouple Wire: Chromel / Alumel, AWG 24, stranded wire, flexible

Color: Yellow

Cable Insulation: PVC, stable up to 221 degree Fahrenheit F or 105 degree Celsius C

Connectors: High quality ABS plastic housing, stable to 248 degree Fahrenheit or 120 degree Celsius

1 female connector for standard round prongs (4.0 and 4.8mm)

1 male connector for miniature flat prongs
