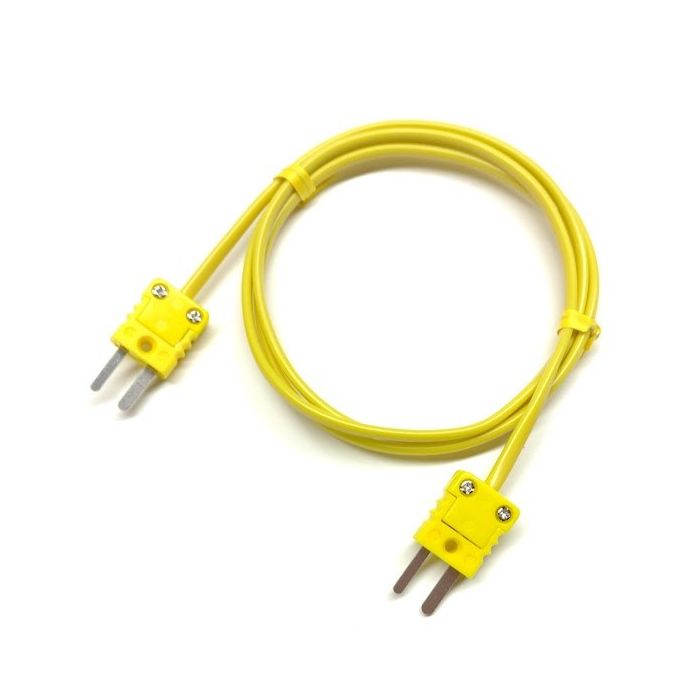

K-Type Thermocouple Extension Cable Wire with Mini Male to Mini Male Connector

K-Type Thermocouple Extension Cable with Two Male Miniature Thermocouple Connectors

2 ft length

This listing is for 1 K-Type Thermocouple extension cable, with a miniature male to miniature male type K thermocouple connector. They conform to the miniature connector dimensions with flat blades and the K-Type Thermocouple Extension Wire specification. This means the metal prongs and the wire are made from compensating metal, the same material as the K-type thermocouple wire, which is Chromel / Alumel. This means the impact of the extension wire on the temperature reading is minimized.

This K-type extension wire is used when you need a wire that will go from a thermocouple with a female connector to a panel mount jack or an input with a female connector.

Specification:
K-Type Thermocouple Wire: Chromel Alumel, AWG 24, flexible

Color: Yellow

Cable Insulation: PVC, stable up to 221 degree Fahrenheit F or 105 degree Celsius C

Connectors: High quality ABS plastic housing, stable to 248 degree Fahrenheit or 120 degree Celsius
