K-type Thermocouple Wire with Kapton Insulation AWG24 Stranded

K-type Thermocouple Wire with High Temperature Kapton INsulation

- AWG 24 Stranded wire -

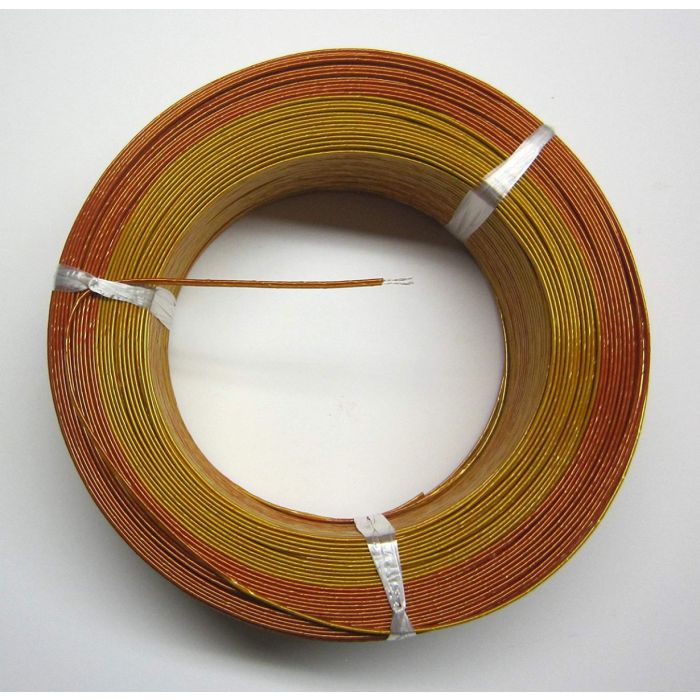

This is a k-type thermocouple wire with yellow Kapton insulation, which is good up to about 400 degree C or 752 degree F. This k-type thermocouple wire can be used to make your own thermocouples for a wide range of applications, or to make your own extension wire. The chromel alumel wire is made to standard thermocouple specifications. It is sold in 5 yard (15 ft) increments, so if you order 2 units of this, you will receive a single 10 yard (30 ft) long wire.

Specification

• K-type Thermocouple wire for making high temperature thermocouple or extension wire
• Chromel / Alumel type K thermocouple wire with Standard Accuracy (whichever is greater): +/- 2.2C or +/- .75%
• 7 strands stranded wire, AWG 24 (0.51 mm)
• ANSI color coded high temperature Kapton plastic insulation, red = -, yellow = +
• Sold in 5 yd increments, 1 unit = 5 yard (15 ft), order 2 units and you receive a 10 yard wir
