Panel Mount Socket for Mini N-type Thermocouple Connector
$4.49
In stock
SKU
MPJ-N
New Miniature Mini Panel Mount Jack for N-type Thermocouple Connector

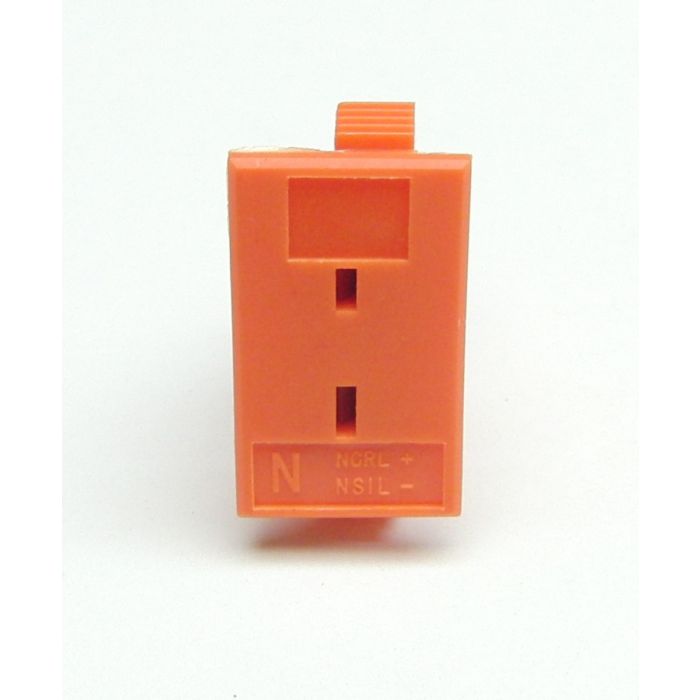

This is a panel mount miniature mini N-type thermocouple jack ( or socket ). The female connector will work with the newer miniature N-type thermocouple connectors. This will allow you to use thermocouples from almost any current manufacturer, such as Omega, Fluke and Wattlow. The plastic housing is made from durable orange nylon and is stable up to 356 degree Fahrenheit or 180 degrees Celsius. It is widely used in Arduino, PID and microcontroller projects when you need a connector input for N-type thermocouples.
The plug is made from the compensating metals, same as the Type N thermocouple material, and will not interfere with the signal. Be sure to hook up the socket to the micro controller using thermocouple extension wire, not copper wire. We now provide approximate cutout dimensions, please adjust them depending on your enclosure and panel thickness.
- N-type female panel mount thermocouple jack or socket
- Fits miniature flat N-type thermocouple connectors
- Durable nylon, color coded according to ANSI, N-type orange
- Transmits the temperature signal from -346 to +2498 °F or -210 to +1370 °C
