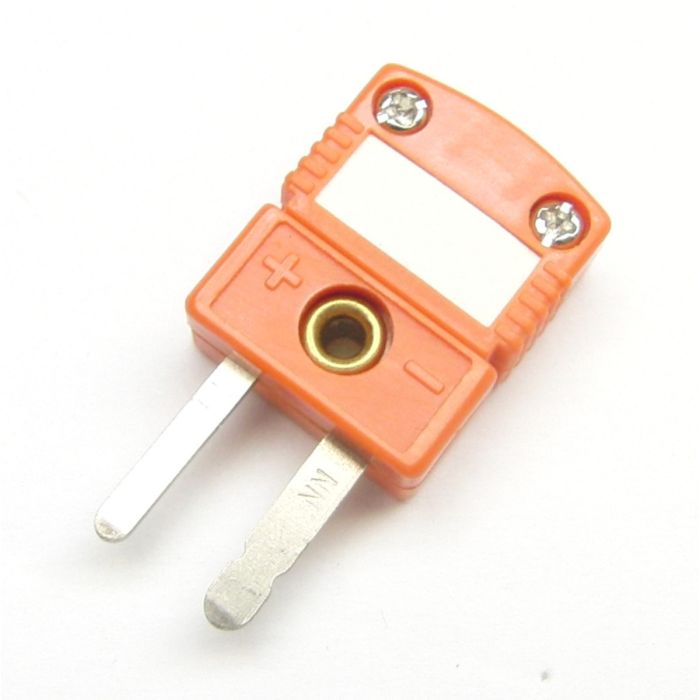

Premium Miniature Mini N-Type Connector Plug Male

Premium Quality Miniature Mini N-Type Thermocouple Connector

This listing is for 1 N-Type Thermocouple connector, one male plug. This N-type thermocouple connector conforms to the miniature or mini connector dimensions with two flat prongs and the N-Type Thermocouple Extension Wire specification. You can use this to build your own N-type thermocouple or N-type extension wire.

N-type thermocouples are made from Nicorsil / Nisil metal. This is a high quality connector, the prongs are made from the same Nicrosil / Nisil alloy combination that is used in the wire.

This is also available as a set as well.

Specification:

- for N-Type Thermocouples: Nicrosil / Nisil

- durable glass filled nylon, color coded according to ANSI, N-type orange

- captive screws, spring loaded wire terminal and write on label

- stable to 360 degree Fahrenheit or 180 degree Celsius

- transmits the temperature signal from -454 to +2400 °F or -270 to +1300 °C
