Surface Mount Type K Thermocouple with Kapton Insulation Solid Wire Variable

    Specification:

• Surface Mount K-type Thermocouple Sensor with high temperature Kapton insulation
• Measurement Range: -328 to 752 °F ( -200 to 400 °C ) , standard accuracy (class II)
• Stainless steel mounting disk with strain releif, about 1/4 inch hole (6.3 mm), works well for 10-32 screws, tight on 1/4 inch screws

• High Temperature Kapton insulation is ANSI Type K color coded: red = - / yellow = +

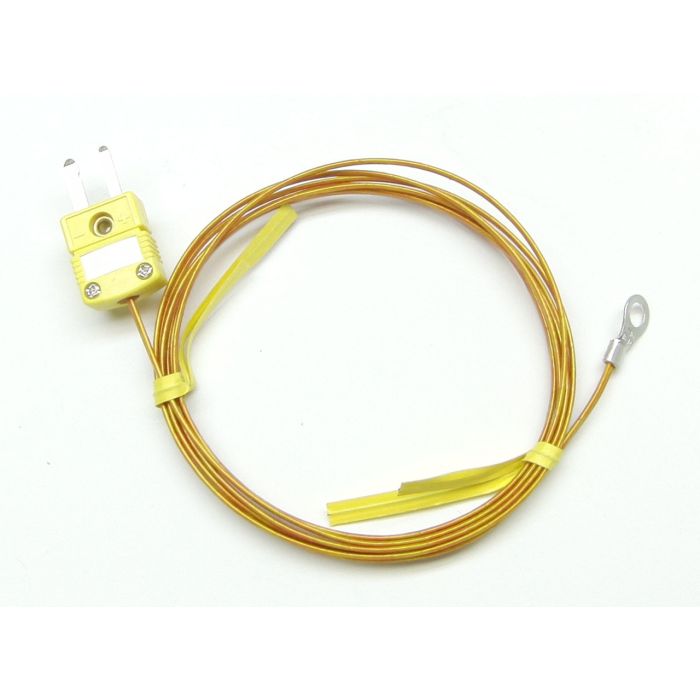

This is a Type K thermocouplen with Kapton insulation that is welded to a mounting ring. This allows you to mount to any surface using a screw. The mounting hole is about 1/4 inch ( 6.3 mm ) in diameter and works well with 10-32 screws. The thermocouple wire used for this probe is a AWG 24 solid wire and has a premium quality miniature thermocouple plus with a white label field. Please select the desired length from the drop down menu.
