T-Type Thermocouple Extension Cable Wire with Miniature Mini Connectors 10 ft

T-Type Thermocouple Extension Cable with Miniature Thermocouple Connectors

10 ft length

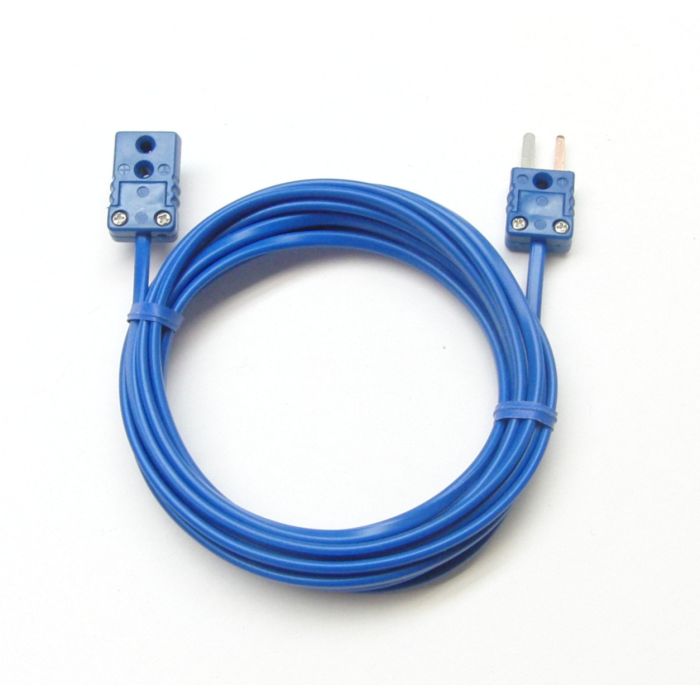

This listing is for 1 T-Type Thermocouple extension cable, with a miniature male and a miniature female T type thermocouple connector. They conform to the miniature connector dimensions with flat blades and the T-Type Thermocouple Extension Wire specification. This means the metal prongs and the wire are made from compensating metal, the same material as the T-type thermocouple wire, which is copper / constantan. This means the impact of the extension wire on the temperature reading is minimized.

These T-type extension wires are frequently used in battery labs for lithium ion and other advanced batteries that are used in handheld devices and electric cars. They also are used in cold temperature and cryogenics, since they can transmit the temperature signal at very low temperatures. In 2022 we also had several orders from satellite manufacturers.

This is available in 3 ft, 6 ft, 9 ft, 12 ft or 15 ft. These are made to order in St Paul, MN, USA.
If you need a different length, please request a quote. We also fabricate custom T-type thermocouple extension assemblies with up to 12 wires.

Specification:
T-Type Thermocouple Wire: Copper / Constantan, AWG 24, flexible

Color: Blue

Cable Insulation: PVC, stable up to 221 degree Fahrenheit F or 105 degree Celsius C

Connectors: High quality ABS plastic housing, stable to 248 degree Fahrenheit or 120 degree Celsius
