T-Type Thermocouple Extension Cable Wire with Miniature Mini Connectors 3 ft

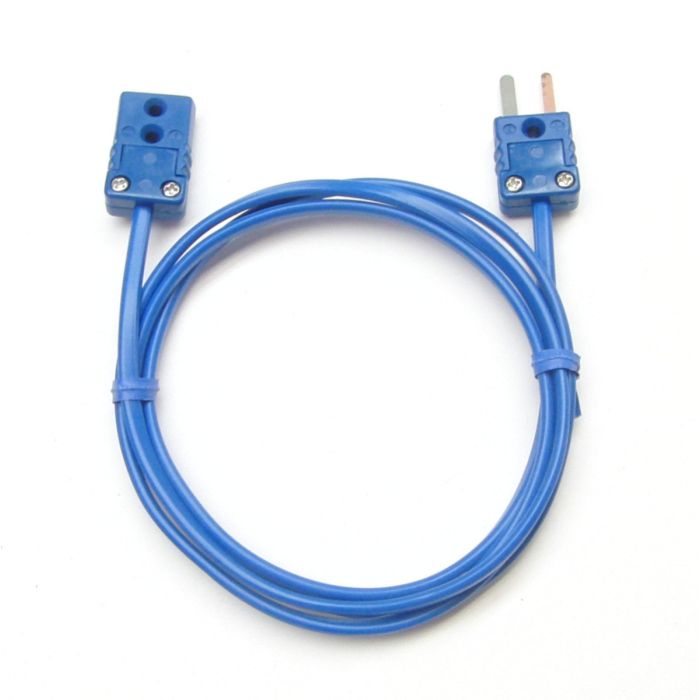

T-Type Thermocouple Extension Cable with Miniature Thermocouple Connectors

3 ft length

This listing is for 1 T-Type Thermocouple extension cable, with a miniature male and a miniature female T type thermocouple connector. They conform to the miniature connector dimensions with flat blades and the T-Type Thermocouple Extension Wire specification. This means the metal prongs and the wire are made from compensating metal, the same material as the T-type thermocouple wire, which is copper / constantan. This means the impact of the extension wire on the temperature reading is minimized.

These T-type extension cables are frequently used in battery labs for lithium ion and other advanced batteries that are used in handheld devices and electric cars. They also are used in cold temperature and cryogenics, since they can transmit the temperature signal at very low temperatures.

This is available in 3 ft, 6 ft, 9 ft, 12 ft or 15 ft. These are made to order in St Paul, MN, USA.
If you need a different or custom length, please request a quote.

Specification:
T-Type Thermocouple Wire: Copper / Constantan, AWG 24, flexible

Color: Blue

Cable Insulation: PVC, stable up to 221 degree Fahrenheit F or 105 degree Celsius C

Connectors: High quality ABS plastic housing, stable to 248 degree Fahrenheit or 120 degree Celsius
