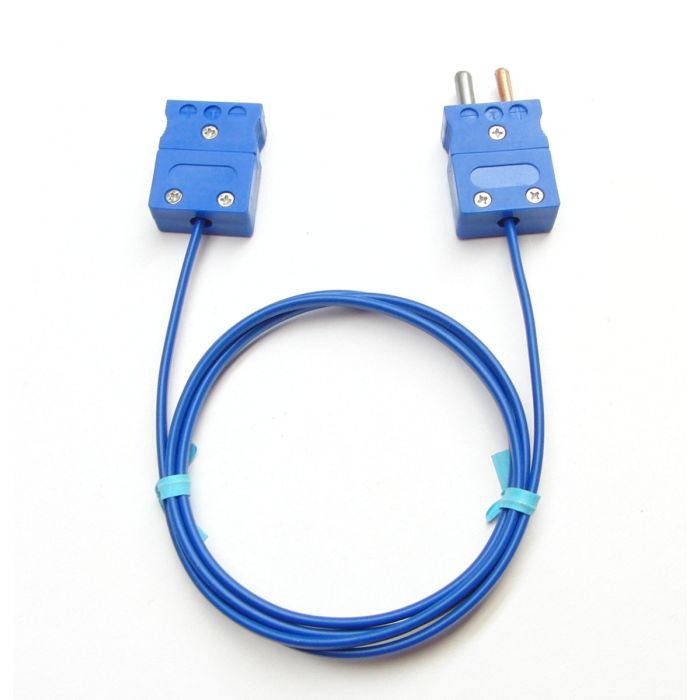

T-Type Thermocouple Extension Cable Wire with Standard to Standard Connector

T-Type Thermocouple Extension Cable with Miniature Thermocouple Connectors

3 ft and other lengths

This listing is for 1 T-Type Thermocouple extension cable, with a standard female to stadard male T-type thermocouple connector. They conform to the standard round (4.0 mm and 4.8 mm pin) connector dimensions and the T-Type Thermocouple Extension Wire specification. This means the metal prongs and the wire are made from compensating metal, the same material as the T-type thermocouple wire, which is copper / constantan. This means the impact of the T-type extension wire on the temperature reading is minimized.

These T-type extension cables are frequently usedin industrial setting on machines and in battery labs for lithium ion and other advanced batteries that are used in handheld devices and electric cars. They also are used in cold temperature and cryogenics, since they can transmit the temperature signal at very low temperatures.

This is available in 3 ft, 6 ft, 9 ft, 12 ft or 15 ft. These T-type extension wires are made to order in St Paul, MN, USA.
If you need a different or custom length, please request a quote.

Specification:
T-Type Thermocouple Wire: Copper / Constantan, AWG 24, flexible

Color: Blue

Cable Insulation: PVC, stable up to 221 degree Fahrenheit F or 105 degree Celsius C

Connectors: High quality glass filled nylon housing, stable to 380 degree Fahrenheit or 190 degree Celsius
