- T-type Thermocouple wire for making thermocouple or extension wire
- Copper / Constantan type T thermocouple wire with Standard Accuracy (whichever is greater): +/- 1.0C or +/- .75%
- Stranded wire, AWG 24 (0.51 mm), 7 strands x0.2 mm
- ANSI color coded PVC insulation, blue = + (positive), red = - (negative)

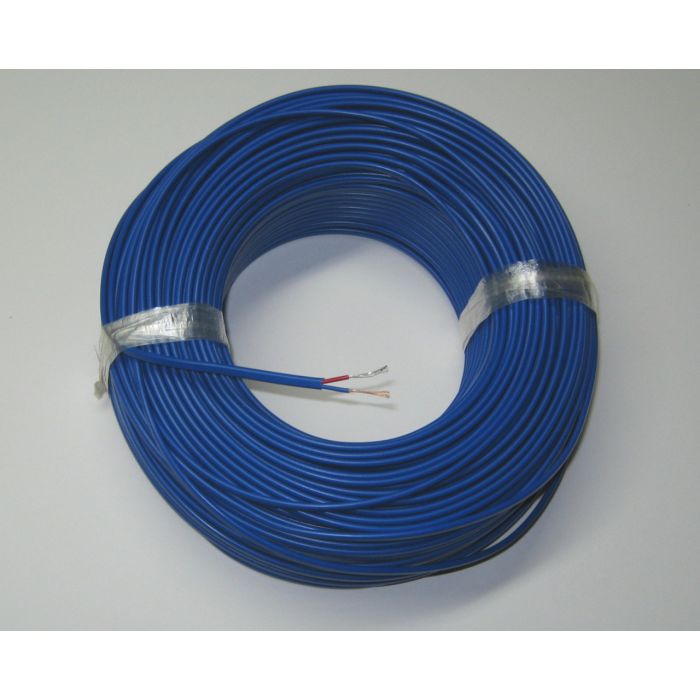

T-type Thermocouple Wire AWG 24 Stranded PVC insulation 330yd
$729.00
In stock
SKU
T-AWG-24-Stranded-PVC-1000-ft
Stranded T-type Thermocouple Wire with PVC insulation
- 1000 ft spool -
This is a T-type thermocouple wire with blue PVC insulation, which is good up to about 105 C or 221 F. This T-type thermocouple wire can be used to make your own thermocouples for a wide range of applications, or to make your own extension wire. The copper constantan wire is made to standard thermocouple specifications. This is a stranded wire with 7 filaments, it is more flexible than a solid wire and therefore especially useful for T-type extension wires.
Specification
