Ultra High Temperature Ceramic Mini K-Type Thermocouple Connector Female Plug

Ceramic Ultra High Temperature Mini K-Type Thermocouple Connector Set

1 Female Connector

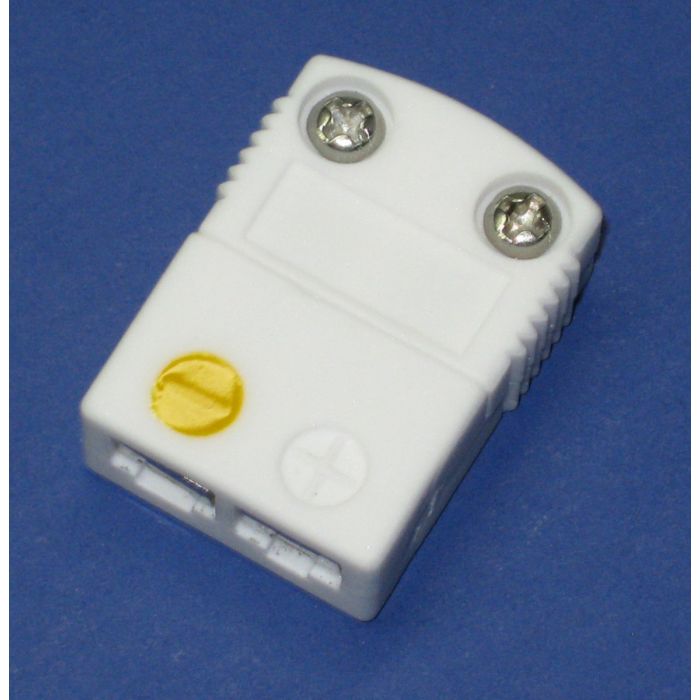

This listing is for female Ceramic Miniature K-Type Thermocouple connector. They conform to the miniature connector dimensions (10mm or 7/16 inch spade type) and the K-Type Thermocouple Wire specification. The housing is made from high temperature ceramic and can withstand temperatures up to 1382 degree Fahrenheit °F or 750 degree Celsius °C.

The flat connector prongs are made from the same metals, chromel and alumel, as the k-type thermocouple wire, they therefore will not impact the measurement. + and - therminals are clearly marked, the - has a yellow dot. The rest of the connector is unglazed clean white ceramic. This connector can be used with high temperature furnaces, vacuum furnaces, kilns and metal worling equipment.

Specification:

- White ceramic with yellow dot, for K-Type Thermocouple Wire: Chromel / Alumel

- High quality ceramic housing, stable to 1382 degree Fahrenheit or 750 degree Celsius

- Big Terminal Screws for Easy Wiring, Accepts Stranded or Solid Wire
